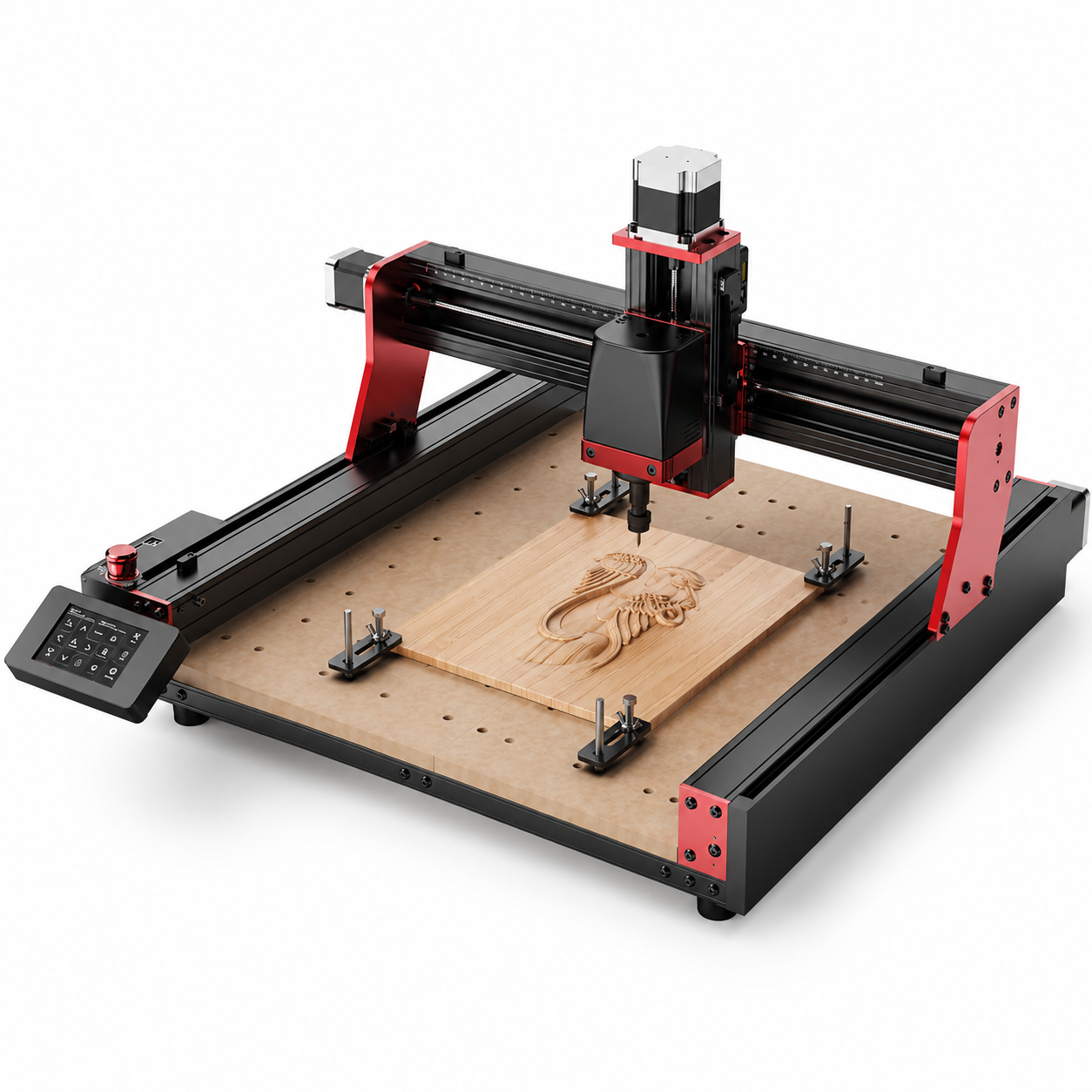

Crown TTC450Pro High Power Diode CNC Engraving Machine
Crown TTC450Pro High Power Diode CNC Engraving Machine

Crown TTC450Pro High Power Diode CNC Engraving Machine

£396.87

Diode Laser Capability: Features compatibility with high-precision diode laser modules, ensuring consistent performance for detailed engraving and light cutting on organic materials.

80W Spindle Power: Equipped with a reliable 80W spindle motor suited for entry-level carving and engraving on wood, acrylics, plastics, and metals like aluminum.

USB/WiFi Connectivity: Integrated USB and WiFi options provide flexible ways to transfer your design files and manage the machine offline, enhancing operational ease of use.

4.3-Inch Touch Screen: Outfitted with a 4.3-inch touch screen that offers an intuitive interface for straightforward setup, configuration, and real-time project monitoring.

Product Specifications

Engraving Area: 460mm*460mm

Easy To Use: Setup and Start Engraving in 10 minutes

Includes Everything to Start Engraving: Complete Package

Free Software: Engraving Software Included in Kit

About Our Crown TTC450Pro

Large Working Area



   460×460×80mm working space, creating more possibilities to meet most daily needs



                        Whether you're a CNC beginner, hobbyist, or a small business owner seeking enterprise-quality for commercial purposes, this is an excellent choice.



You May Also Like

Available Crown 3020 Water Cooled CO2


  • Easier
  • Crown TTC 450 Pro
  • 95% Pre-assembled

Features

  • Simple steps, can be installed in 10 minutes
  • A key switch modes
  • Between CNC and laser engraving
  • Simply replace accessories.
  • Click to switch working. modes
  • CNC
  • Laser engraving

Port Labels (Middle Left)

  • DC24V
  • 500W Moto

New upgraded motherboard, capable of directly controlling multiple units

  • Directly control multiple accessories
  • Air Assist Kit
  • 4th Axis Module
  • 20W Laser Modul
  • Wood Router

Frequently Asked Questions
Why You Choose US

What are the physical dimensions and weight of the machine?

The machine size is 742 × 689 × 413 mm (with a package size of 760 × 740 × 213 mm or roughly 76 × 76 × 24 cm) and it weighs 21 kg.

What style of configuration does this CNC router use?

It features a sturdy Gantry Type configuration built from an aluminum profile and plastic.

What is the maximum carving area and depth capacity?

The engraving size is 460 × 460 × 80 mm (18.1 × 18.1 × 3.14 inches) with an engraving depth limit of less than 0.1 mm.

What are the spindle speeds and power ratings?

The machine supports dual setups: an 80W spindle running at 8,000 RPM and a 500W spindle reaching 12,000 RPM.

What is the maximum engraving speed and precision?

It operates at an engraving speed of 800 mm/min with a precise positioning accuracy of 0.05 mm (XY axis).

What materials can I carve or engrave with this machine?

You can work on plastic, soft aluminum, wood, acrylic, PVC, MDF, paper, leather, and glass.

Which file and graphic formats are supported?

It recognizes NC, DXF, BMP, JPG, PNG, GCODE, and AI file formats.

What control software can I use with this system?

The machine is compatible with Candle, Carvco, Artcam, and Easel software across Windows and MAC operating systems.

How do I connect to the machine to upload my designs?

You can connect via USB cable, 2.4GHz Wi-Fi, or NFC technology.

What are the continuous working limits and cooling requirements?

The machine is rated for up to 6 hours of continuous wave operation and relies on standard air cooling.

What's Included In This Package?

Crown Engravers comes with a complete kit ready to engrave:

  •  Engraving Machine
  • Power Adapter
  • Tools
  • Instruction Manual
    • 4th Axis Module Supported
    • 4th axis rotary module realizes the A axis is used in conjunction with the X, Y and Z axes to create more complex shapes and contours in a workpiece.
    • Engraving Software Included in the Package

    User-Friendly Software

    There are a number of different software programs that can be used with laser engraving machines. Some popular options include:

    • CorelDRAW(Free/Paid)
    • Adobe Illustrator(Paid)
    • Inkscape(Free)
    • LaserGRBL(Free)
    • LightBurn(Paid)
    • Other AI, BMP, DXF




    • "The engraving process takes only a few simple steps"

    I was looking for an affordable engraver machine that was high-quality and could be used by someone with minimal training. As a business owner, I couldn’t afford the high costs of larger units or commercial grade laser systems. Crown engravers machine did everything I needed!
